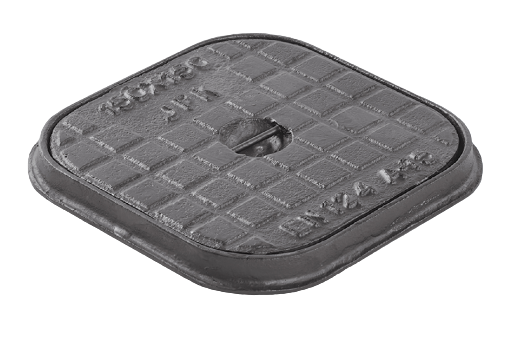

Solid Top
Material: Grey Cast Iron
Square/rectangular single-seal solid-top manhole cover. Anti-slip surface for residential and urban applications.
- Features
- Durable material
- Robust quality
- Easy installation
- Options
- Coating – Bitumen (Gloss/Matte), Epoxy coating
Available sizes: 150×150 to 600×600 mm (height LD 25–35 mm, MD 40–45 mm, HD 75–100 mm)

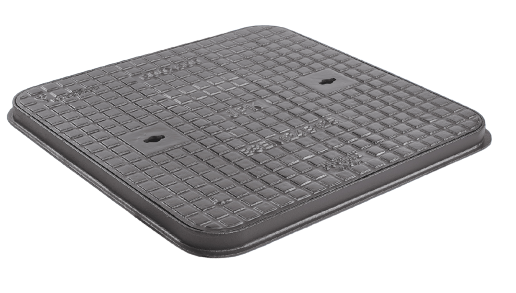

Material: Grey Cast Iron
Square/rectangular double-seal solid-top cover. Anti-slip surface with rubber gasket sealing.
- Features
- Durable material
- Robust quality
- Easy installation
- Options
- Coating – Bitumen (Gloss/Matte), Epoxy coating
- Sealing – Rubber gasket for watertight, odour-proof sealing
Available sizes: 300×300 to 600×600 mm (height LD 40–45 mm, MD 50–55/75 mm, HD 75–100 mm)

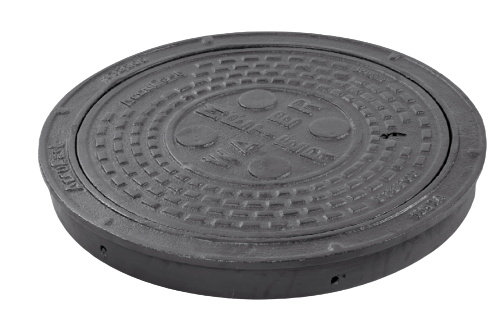

Material: Grey Cast Iron
Circular reversible cast iron cover and frame. Customisable designs for brand integration.
- Features
- Durable material
- Robust quality
- Easy installation
- Space optimization – takes less space than traditional square manhole covers
- Options
- Coating – Bitumen (Gloss/Matte), Epoxy coating
Available sizes: 19 1/2 to 32 Inches (height 4 ¼ –4 ⅜ Inches)

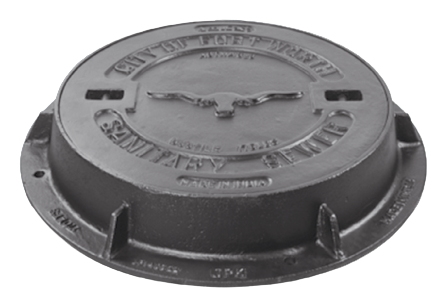

Material: Grey Cast Iron

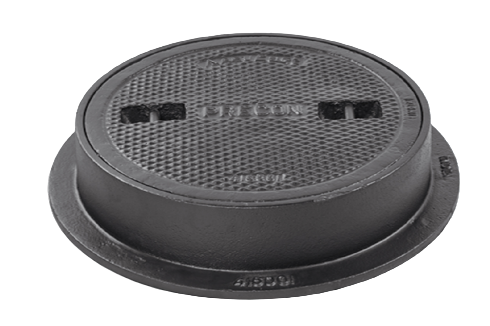

Round cast iron manhole cover and frame. High load-bearing, weather-resistant. Customisation for branding.
- Features
- Durable material
- Robust quality
- Easy installation and maintenance
- Space optimization – takes less space than traditional square manhole covers
- Options
- Coating – Bitumen (Gloss/Matte), Epoxy coating
- Customisable – Tailored to requirements
Available sizes: 23.5″ to 32″ diameter

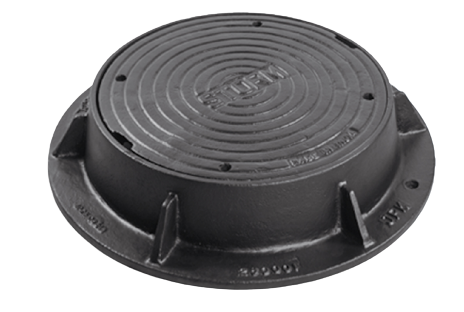

Material: Ductile Iron Cover + Grey Cast Iron Frame
Combination product — ductile iron cover with grey cast iron frame.
- Features
- Durable material
- Robust quality
- Easy installation and maintenance
- Space optimization – Takes less space than traditional square manhole covers
- Options
- Coating – Bitumen (Gloss/Matte), Epoxy coating
Available sizes: 32 Inches (height 4 ⅜ – 5 1/2 Inches)

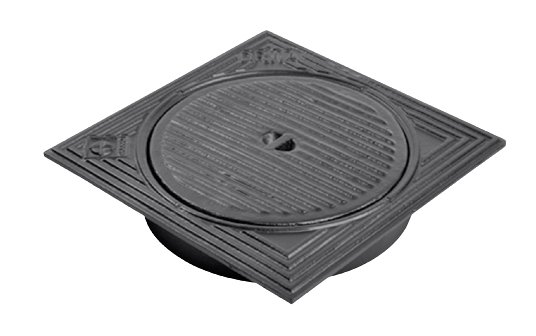

Material: Grey Cast Iron
Circular cover in a square frame with hinge and locking mechanism.
- Features
- Durable material
- Robust quality
- Easy installation and maintenance
- Options
- Coating – Bitumen (Gloss/Matte), Epoxy coating
Available sizes: 250 Dia-400 Dia mm (height 50 – 60mm, Pipe Internal Dia 265-420 mm)
Material: Grey Cast Iron
Circular cover in a square frame with hinge and locking mechanism.
- Features
- Durable material
- Robust quality
- Easy installation
- Enhanced stability with hinges
- Options
- Coating – Bitumen (Gloss/Matte), Epoxy coating
Available sizes: 400 Dia mm (height 55 mm, Lockable)

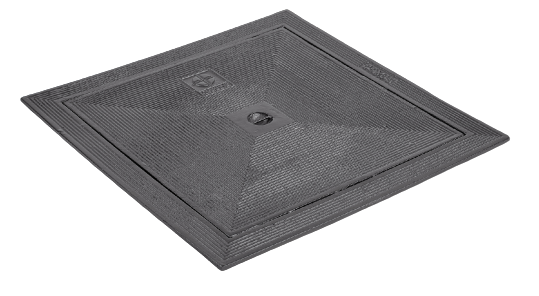

Material: Grey Cast Iron
Square/rectangular double-bottom cover and frame for drainage and utility access applications requiring additional clearance depth below the frame. Anti-slip surface with durable load-bearing construction for residential and urban environments.
- Features
- Durable material
- Robust quality
- Easy installation and maintenance
- Options
- Coating – Bitumen (Gloss/Matte), Epoxy coating
Available sizes: 300×300 DB to 800×800 DB (height 55-65 mm)
Material: Grey Cast Iron
Square/rectangular single-bottom cover frame in grey cast iron. Shallow-profile design for flush-to-grade installations where minimal sub-surface depth is available. Anti-slip surface with high load-bearing strength and quick installation.
- Features
- Durable material
- Robust quality
- Easy installation
- Options
- Coating – Bitumen (Gloss/Matte), Epoxy coating
Available sizes: 300×300 SB to 800×800 SB (height 20 mm)

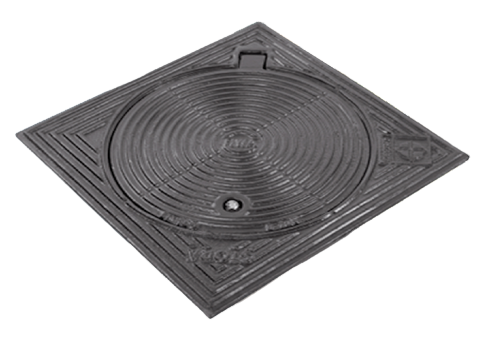

Material: Grey Cast Iron
Circular grey cast iron cover in a square frame with integrated hinge mechanism and locking capability. Designed for utility and drainage access points where convenient single-person operation is required alongside a secure lockable closure. The hinge improves stability on opening and prevents the cover from falling into the shaft.
Features:
- Superior load-bearing capacity
- Durable and all-weather resistant
- Easy installation and accessibility for ingress/egress
- Space-optimised and cost-effective circular-in-square design
- Enhanced stability with integrated hinges
- Lockable — security locking mechanism included
Options:
- Security — locking mechanism
- Design — customizable as per aesthetics for brand integration
- Paint — Bitumen (Gloss/Matte) and Epoxy coating (various colours and microns)
- Handling — Lifting keys
Available sizes: 400 DIA (clear opening 320 DIA | overbase 500×500 mm | height 55 mm | hinge: YES | lockable: YES)
